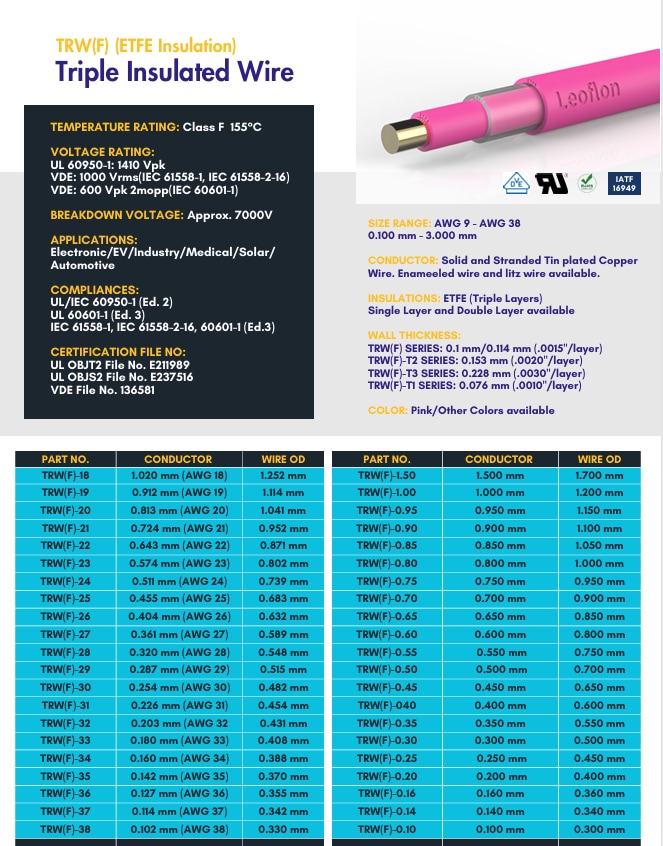

ETFE TRIPLE INSULATION WIRE , Class F 155°C, 1410Vpeak

ETFE TRIPLE INSULATION WIRE, CLASS F

UL FILE NO.E211989 VDE No.136581

UL 1446 INSULATION SYSTEM: GH-155 UL FILE NO. E237516

CAT No. TRW(F) & TRW(F)(L) & TRW(F)(L)(J)* For Reinforced Insulation, Rated 155°C, 1410Vpeak

Size: AWG 9 - AWG 38 (3.0mm - 0.1mm)

Compliances : IEC62368-1 / IEC60601-1/ IEC61558-1

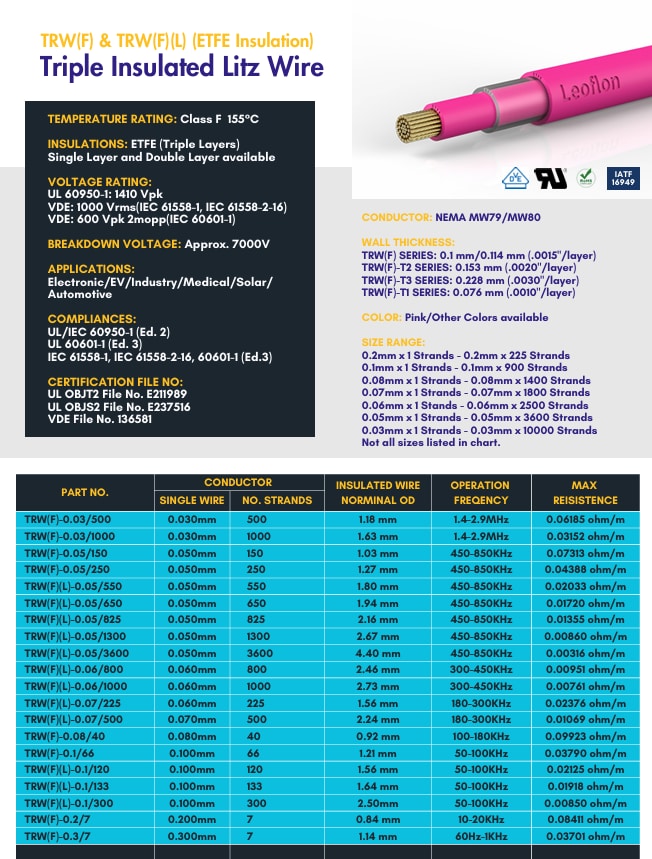

SIZE RANGE:

SIZE RANGE:

0.2mm x 1 Strands - 0.2mm x 225 Strands

0.1mm x 1 Strands - 0.1mm x 900 Strands

0.08mm x 1 Strands - 0.08mm x 1400 Strands

0.07mm x 1 Strands - 0.07mm x 1800 Strands

0.06mm x 1 Stands - 0.06mm x 2500 Strands

0.05mm x 1 Strands - 0.05mm x 3600 Strands

0.03mm x 1 Strands - 0.03mm x 10000 Strands

Not all sizes listed in chart.

SPECIFICATION

Conductor : Solid and Stranded Copper & TIN PLATED Copper

Insulation : ETFE Wall Thickness : 0.075-0.1mm

Temperature & Voltage Rating : Rating155℃ , 1410Vpeak (Class B)

Dielectrical Strength : 70KV/mm (0.1mm Wall Thickness : 6KV up)

Colors : Yellow or other colors are acceptable.

Benefit : Triple insulated wire offers extra protection against pinholes

Application: Transformer Insulation Wire of Power Supplier & AC/DC Adapters,

                  AI Server , EV Charger, Data center,  Charging Station, Grate driver

                   Solar , Industrial , Mobile Phone Battery Chargers and Ring Coil

                  & Choke & PC Computer, Netebook Computer, Digital Camera Insulation wire.........

WALL THICKNESS:

TRW(F) SERIES: 0.1 mm/0.114 mm (.0015"/layer)

TRW(F)-T2 SERIES: 0.153 mm (.0020"/layer)

TRW(F)-T3 SERIES: 0.228 mm (.0030"/layer)

TRW(F)-T1 SERIES: 0.076 mm (.0010"/layer)
